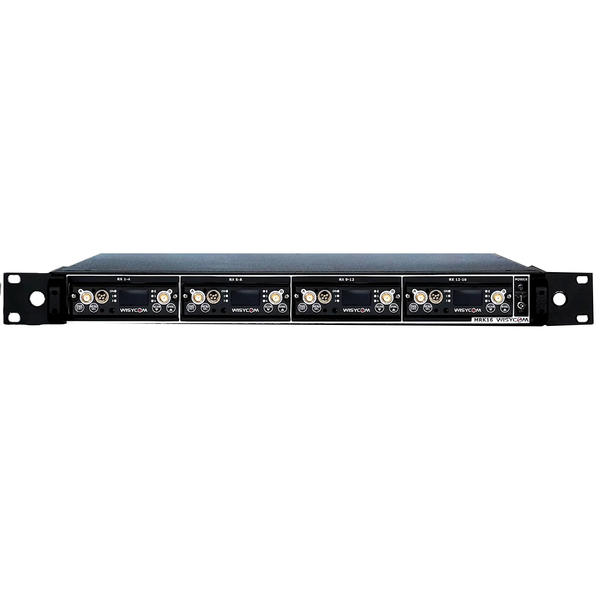

Wisycom MRK 16

Descrizione

MRK16 is a modular wireless-microphone receiver system that fit up 16 channels in a
compact 19” 1RU alluminium chassis. It accepts up to 4 MCR54 receivers, providing antenna
distribution, RF filtering and advanced audio routing (analogue, AES3 and Dante).

FEATURES

Up to 16 true diversity channels in a compact 19” 1U rack
4 x Receiver MCR54 and 16 transmitter MTP 40 or MTP 41
Ultra wideband receiver system from 470 to 1260 MHz equipped with 10 automatically selected band-pass filters
RF Over Fiber for reception without distance limits! The fiber module EXP2 allows to replacement of coaxial cable and antennas located miles away
Multiple audio outputs:
-Digital (AES72&AES59)
-Dante (primary&secondary)
-Analog (2xDB25 Tascam wiring)
Dual Area Matrix to select and combine 2 diversity zones. Antenna booster and remote control of Wisycom LFA/ADFA/BFA.
Bluetooth 5 Long Range: Class 1 (100mW) remote control to connect Wisycom devices within a range of hundreds of meters.
Daisy chain up to 4 racks for 64 channels in only 4U
5 ports manageable Gigabit Ethernet switch (ETH5 is connected to an internal SFP module for fiber data)
Redundant (dual) power supply on XLR
Dual Power Over Ethernet input and PoE output (PE1 optional)
USB-C connectivity with powering (1.5A)
